LZ-16KG5: 100GigE line-scan camera with Gpixel GL5016

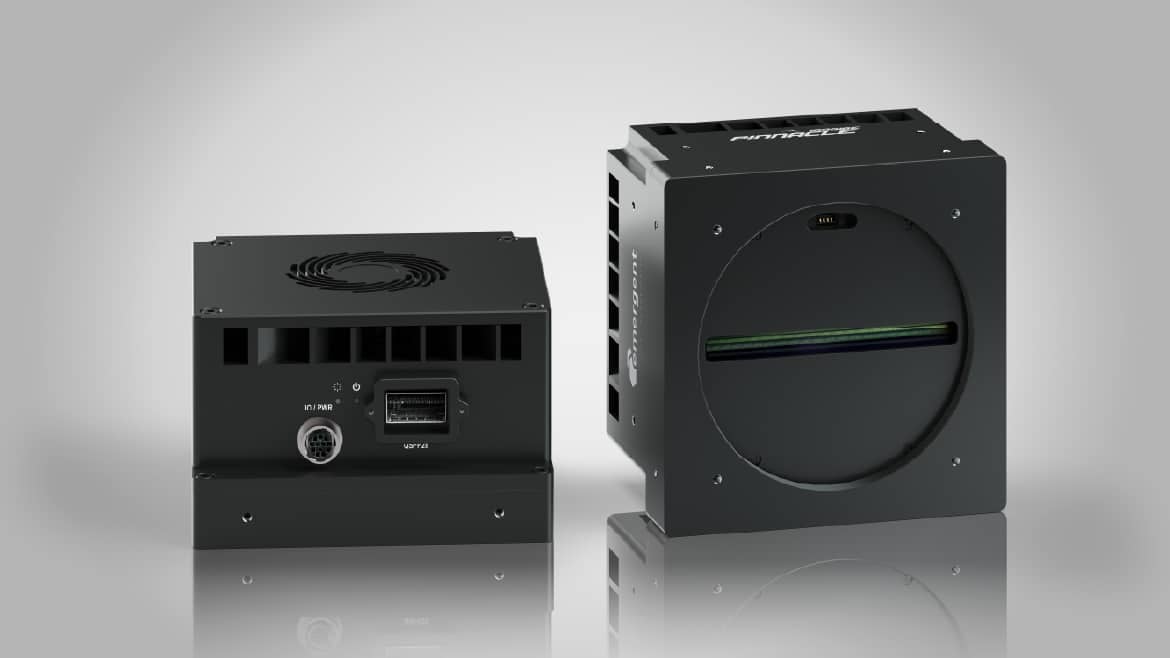

LZ-16KG5: 16Kx16 100GigE line-scan camera with Gpixel GL5016

PINNACLE LZ-16KG5 features the Gpixel GL5016 CMOS sensor. LZ-16KG5 comes with a resolution of 16Kx16 pixels and a line rate of: Single Line – 400KHz, Trilinear – 133KHz. This enables high-speed and low-noise image capture at 16K vision, ensuring all your inspection, sorting and production control requirements are met. Its 100GigE QSFP28 interface allows cable lengths from 1M up to 10KM without the need for costly fiber converters/repeaters.

Benefits

  • High-speed 100GigE QSFP28

  • 100x the speed of GigE

  • GigE Vision® and GenICam™ compliant

  • Available in monochrome (LZ-16KG5-M), and color (LZ-16KG5-C)

Applications

  • Industrial Inspection
  • Printing Inspection
  • Label Inspection
  • Film Inspection
  • PCB Inspection
  • Automotive Inspection
  • Food Sorting and Grading
  • Pharmaceutical Inspection
Sensor GL5016
Resolution 16Kx16
Line Scan Mode Single line – 400KHz – 16K, Trilinear – 133KHz – 16K
Sensor Scanning Width 81.92mm
Cell Size 5×5μm
Standard Mount M95
Shutter Global
Bit Depth 8 & 10 bit
GPIO / Triggering 2 in, 1 out Encoder A/B in
Interface 100GigE QSFP28
Exposure/Integration* 1μs-1s
Dynamic Range 66dB
Monochrome Modes Mono8, Mono10, Mono10Packed
Color Modes RGB
Corrections Flat shading (dark, lit), Spatial
Operating System Win 7,8,10, Linux (64bit)
Compliance CE, FCC, RoHS, WEEE, GigE Vision, GenICam
Power Requirements 18W
Operating Temperature 0C – 45C
Storage Temperature -30C to +60C
Dimensions & Weight 115 x 115 x 53 – 800g
Warranty 2 Years

*all minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.
