PINNACLE 100GigE Line Scan Cameras (LZ Series)

PINNACLE is Emergent’s ultra-high-speed 100GigE line scan camera family, built around the QSFP28 interface and designed for high-throughput line-scan inspection and capture systems. The series includes mono and trilinear models (e.g., LZ-16KG5 is mono/color and trilinear), as well as 256 TDI models that increase effective light collection for sharper imaging in low light and/or at high speeds.

PINNACLE supports GigE Vision 3.0 and RDMA/RoCEv2 workflows for low-latency, high-throughput streaming, and can be synchronized to 1 µs in multi-camera systems.

  • Resolution: 8K, 9K, 16K
  • Speed: 400-1000kHz
  • Chroma: Color, Mono (model dependent)
  • Sensors: Gpixel
  • Interface: 100GigE QSFP28
PINNACLE 100GigE Industrial Line Scan Cameras are the fastest available, with peak scanning rates of 1,000KHz and resolution up to 16K.
Model Chroma Resolution Line Rate Tri Rate Interface Sensor Name Pixel Size
LZT 8KG5 M 9K 256 TDI 100GigE QSFP28 Line Scan Camera LZT-8KG5-MNew Mono 8K 256 TDI 1000KHz – 100GigE QSFP28 Gpixel GLT5008BSI 5×5µm
TLZ 9KG5 M 9K 256 TDI 100GigE QSFP28 Line Scan Camera LZT-9KG5-M Mono 9K 256 TDI 608KHz – 100GigE QSFP28 Gpixel GLT5009BSI 5×5µm
TLZ 16KG5 C 16Kx16 100GigE QSFP28 Line Scan Camera LZT-16KG5-MNew Mono 16K 256 TDI 500KHz – 100GigE QSFP28 Gpixel GLT5016BSI 5×5µm
TLZ 16KG5 M 16Kx16 100GigE QSFP28 Line Scan Camera LZ-16KG5-M Mono 16Kx16 400KHz 133KHz 100GigE QSFP28 Gpixel GL5016 5×5µm
TLZ 16KG5 C 16Kx16 100GigE QSFP28 Line Scan Camera LZ-16KG5-C Color 16Kx16 400KHz 133KHz 100GigE QSFP28 Gpixel GL5016 5×5µm

Machine Vision Software

eCapture Pro Vision Software

eCapture Pro software runs high-performance vision systems.

eCapture Pro is fully-featured machine vision software. Use the simple drag and drop interface to build 10, 25 and 100GigE camera systems, including multi-camera systems validated to 500+ cameras.

eSDK Pro Vision Software

Build your own vision machine applications using eSDK Pro.

A modern vision SDK for design and deployment of vision systems with up to 90% less programming. It takes care of the underlying capture, processing, transport and storage, so you can focus on application logic.

Network Interface Cards (NICs)

Emergent designs and manufactures its own network interface cards to support 10 / 25 / 100GigE camera systems, as well as supporting cards from Mellanox (NVIDIA), Broadcom and AMD.

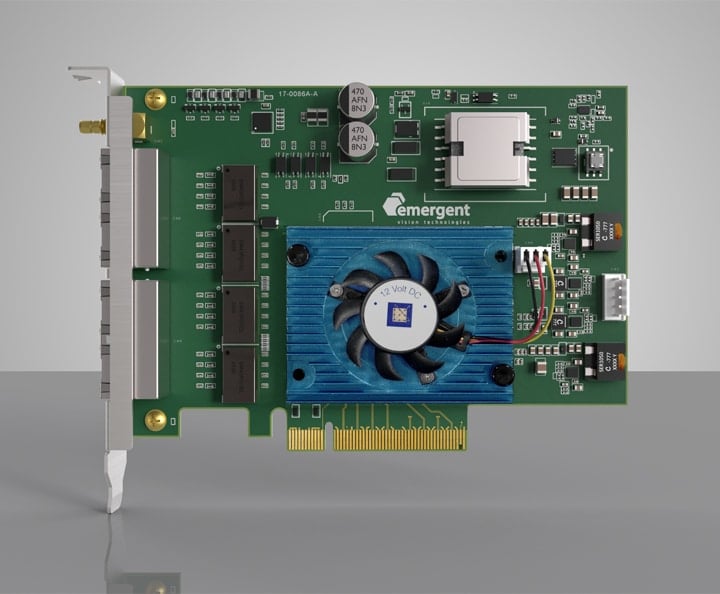

THEIA 10GigE network interface cards support multi-camera 10GigE systems, including EROS by Emergent.

THEIA 10GigE NICs

  • Full support for Eros 10GigE cameras at 1, 2.5, 5, 10GigE RJ45
  • Power over ethernet
  • Quad-port
  • Zero-copy
  • GPUDirect
  • FPGA-based
Zeus Network Interface Cards are QFP28 single or dual port cards to support 100GigE camera systems.

HERMES 25GigE NICs

  • Dual or quad-port 25GigE SFP28
  • PCIe Gen3 x8
  • 5V TTL Trigger Port
  • Camera multiplexing
  • GPUDirect
  • GigE Vision
  • Sync to 1µs
Zeus Network Interface Cards are QFP28 single or dual port cards to support 100GigE camera systems.

ZEUS 100GigE NICs

  • Single or dual-port 100GigE QSFP28
  • PCIe Gen3 or Gen4 x16
  • 5V TTL Trigger Port
  • Camera multiplexing
  • GPUDirect
  • GigE Vision
  • Sync to 1µs
Emergent GigE camera systems are compatible with third-party network interface cards from Mellanox (NVIDIA), Broadcom and AMD.

Third-party NICs

  • NVIDIA, Broadcom, AMD
  • QSFP28, SFP28, SFP+
  • 10 / 25 / 100GigE
  • Dual and quad-port
  • PCIe Gen3/4 x/x16
  • Camera multiplexing
  • GPUDirect
Emergent sells vision system accessories such as switches, camera cables (SFP+, QSFP, RJ45), EF and R lens mounts and camera power supplies.

Vision System Accessories

See the full array of network switches, cables (QSFP28, SFP28, SFP+, RJ45), lens mounts and power supplies needed to run your machine vision system.
