ZENITH 100GigE Industrial Cameras (HZ Series)
ZENITH 100GigE area scan cameras deliver unmatched resolution and frame rates, setting the standard for high-performance imaging.
From virtual reality and sports broadcasting to medical research, scientific analysis, and industrial automation, ZENITH powers applications where speed and image clarity are critical.
Multi-camera systems can be synchronized to within 1 µs, while standard QSFP28 connections handle the massive data streams of 100GigE.
All models are compliant with RDMA and GigE Vision 3.0 standards.
- Resolution: 2.5 – 152 MP
- Speed: 16 – 3462 FPS
- Chroma: Color, Mono
- Sensors: Sony, Gpixel
- Interfaces: 100GigE QSFP28
100GigE Machine Vision Cameras for Innovators

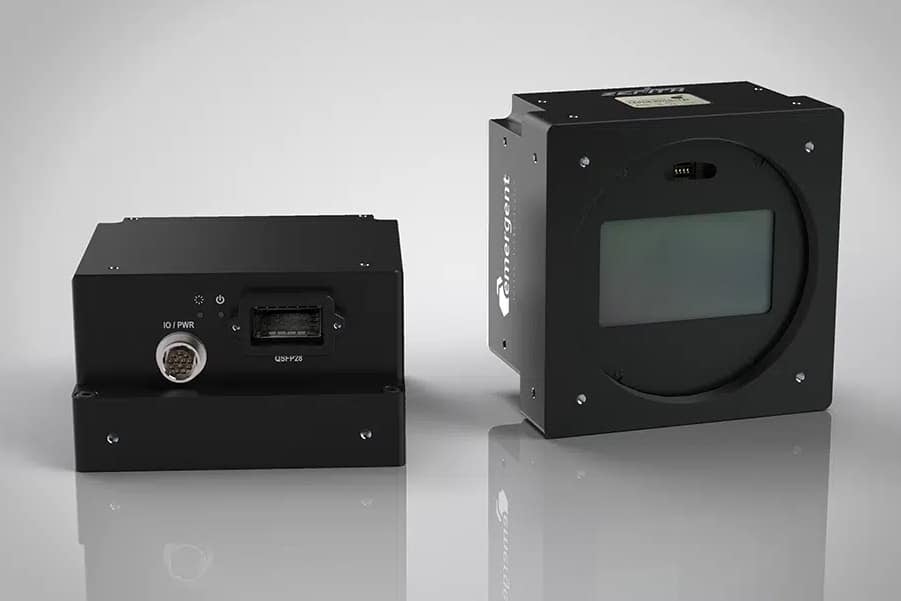

HZ-150 100GigE Industrial Camera
HZ-150 100GigE Camera: 152MP, 16fps
Peak speed and resolution
ZENITH 100GigE industrial cameras are the fastest and highest resolution cameras that Emergent manufactures.
Highest resolution
HZ-150-G: 152MP, 16 FPS
Blend of speed and resolution
HZ-25000-SB: 24.5MP, 394 FPS
Peak speed
HZ-2000-G: 2.5MP, 3,463 FPS
ZENITH 100GigE HZ-10000-G Camera
HZ-10000-G Camera: 10MP, 1000fps
100GigE camera interfaces
ZENITH 100GigE cameras use the latest sensors from Sony and GPixel and are offered in color and mono versions. To transfer the large data streams from ZENITH cameras, 100GigE network interface cards and the QSFP28 interface are used. These are standardized networking components, so you can build imaging systems cost-effectively.
100GigE Industrial Cameras | ZENITH Series
HZ-12000-SB Camera: 12.4MP, 594fps
Multi-camera capabilities
To ensure lossless capture, processing and storage from multiple cameras, Emergent’s software uses NVIDIA’s GPU Direct, which enables tasks to be handled by the computer’s GPU. FlexProc and FlexTrans are built into our software, so you control which system nodes perform capture, processing and storage tasks.
RDMA & GigE Vision 3.0 compliant
ZENITH 100GigE Cameras – Common Specifications
Feature |
Specification |
|---|---|
| GigE Speed | 100GigE (100x faster than 1GigE) |
| Sensors | ZENITH uses the latest global shutter sensors from Sony and GPixel. |
| Power Requirements | 18W |
| Dimensions | Model dependent |
| Sensor & Shutter Type | CMOS, Global Shutter |
| Standard Mounts | C Mount, M52, M60, RF (EF / F Mount available; mounts are model dependent) |
| Bit Depth | 8-bit, 10-bit, 12-bit |
| Operating System | Windows (64-bit), Linux (64-bit) |
| Compliance | CE, FCC, RoHS, WEEE, GigE Vision, GenICam |
| Warranty | 2 years |
| Third-Party Software Compatibility | Cognex VisionPro, MVTec Halcon, NI Labview, GenTL Support |
| Model | Chroma | Resolution | Frame Rate | Interface | Sensor Name | Pixel Size |
|---|
Customer innovation with ZENITH 100GigE cameras

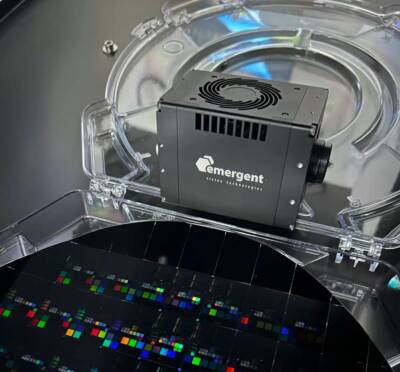

High-speed camera helps push limits on semiconductor metrology
The Advanced Research Center for Nanolithography (ARCNL) is working to solve a major problem for the semiconductor industry related to vibration. Using a ZENITH 100GigE camera, they have developed a method to overcome the inherent sensitivities in the kinds of interferometric techniques an equipment maker will need to ensure accuracy in chip manufacturing.
ZENITH 100GigE high-speed camera enables innovative biomedical diagnosis
Researchers at Vrije Universiteit Amsterdam are pioneering a novel imaging technique known as phototransient holographic imaging, which provides unprecedented insights into living cells. Central to this advancement is the HZ-21000-G 100GigE camera from Emergent.

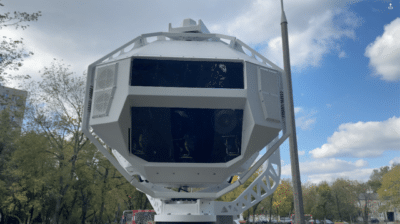

100GigE Cameras help transport sports fans into immersive virtual reality experiences
By leveraging innovative high-speed cameras and novel AI techniques, sports VR company Sport Vision Technology (SVT) has created an immersive VR world in which fans can experience the game from multiple perspectives — even from the ball’s perspective!
High-Speed Cameras Break Down Barriers for Real-Time Mixed Reality
Discover how metaverse live-streaming company Condense Reality took its mixed reality system to the next level using Emergent high-speed GigE cameras in its volumetric capture system. Emergent products are largely used within metaverse, sports, entertainment, and live event applications.
Machine Vision Software
More software choices
Network Interface Cards (NICs)
Emergent designs and manufactures its own network interface cards to support 10 / 25 / 100GigE camera systems, as well as supporting cards from Mellanox (NVIDIA), Broadcom and AMD.
